    Compact design for mobile applications with DC power supply.
    MMN serial Receiver

    Solidity, ergonomics, safety



    MMN serials Receiver means in small size and non-display receiver, it represents the compendium between practicality and rationality.
    A compact receiver in shape and size, powered by DC power supply mostly used for proportional valve,converters. that make it suitable for various situations and customer customization needs.

    find out more about application
    Download the MMN Brochure

    views

    BULL SC SERIAL

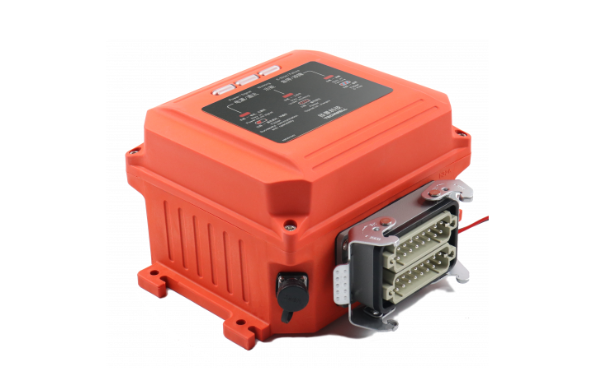

    TOP VIEW

    BULL MC SERIAL

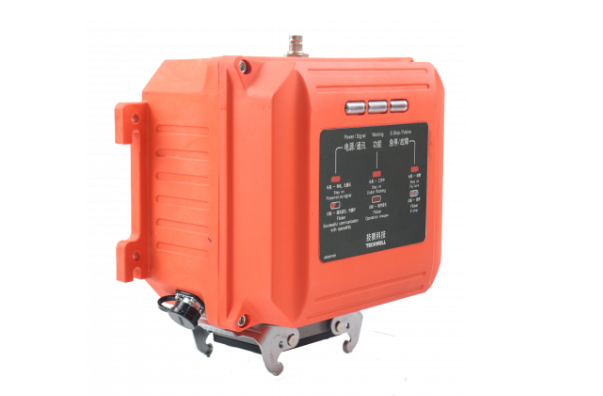

    LEFT VIEW

    BULL LN SERIAL

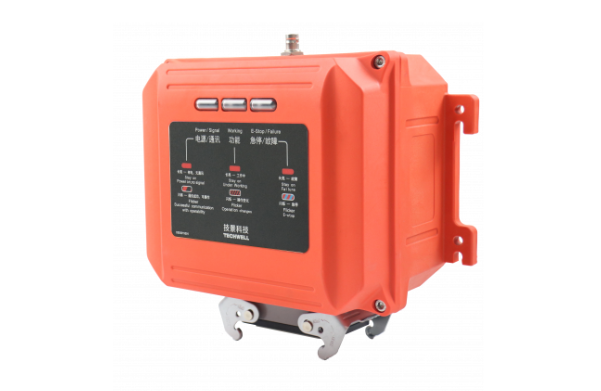

    Right view

    BULL LN SERIAL

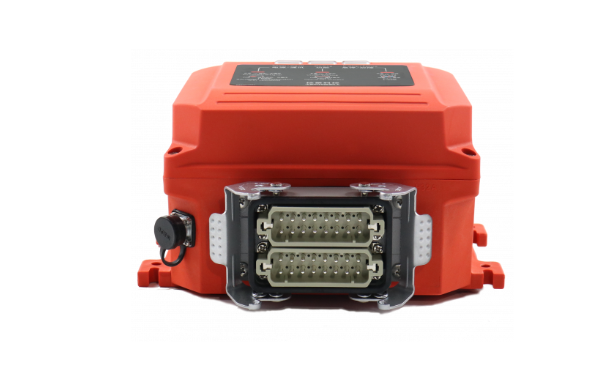

    Side view

    Product description

    Dimensions and Weight

    204 × 165 × 124 mm
    ca. 1.7 kg (3.74 lb.)

    Operating temp$Standard

    -25-70,optional -40-70

    EN ISO 13849 LD

    Frequency ranges

    433MHz : 427.00～436.300MHz
    470MHz : 472.35～485.775MHz

    CONTROL COMMAND

    24 ways relay
    12 ways PWM(extentional)

    4-20mA,0-5V,0-10V
    25%Uc-50%Uc-75%Uc

    heavy-duty connector

    → HAN3+1/HAN4+1;
    → HAN16/24/25/40;

    Available protocols

    → CAN;
    → CANOPEN;
    → MODBUS-RTU/TCP;
    → PROFIBUS-DP;
    → PROFINET;
    → MORE REQUESTED;

    Optional functions

    → HMI
    → FEEDBACK TEST(analog$on/off signal)
    → BUS FEEDBACK
    → Sound and light alarm
    → Intelligent identity recognition card

    Extended control concepts

    → Combined operation
    Combined operation allows the operator to control up to 4 cranes simultaneously with just one transmitter

    → Pre-selection of trolley / hoist
    With this function, where 2 trolleys are available, the operator can select either an individual trolley or both trolleys for simultaneous control.

    → Catch-release
    The catch-release function allows control of a crane or machine with two or more radio controls. Two or more operators can take turns working with the same crane or machine without having to switch the control device.

    design unique output signal by yourself +

    MMN KEY configure

    Connection and Distance
    Vision Protocols and output vision
    Operating Elements
    Control Functions
    Extended Control Concepts

    Demand Form CAD MODEL

    MMC KEY configure

    Connection and Distance
    Vison Protocols and output vision
    Operating Elements
    Control Functions
    Extended Control Concepts
    Feedback date for Display

    Demand Form CAD MODEL

    Main Features

    → Prototyping and series production

    → Total Configurability

    → Programing and diagnostic

    → Harsh environments

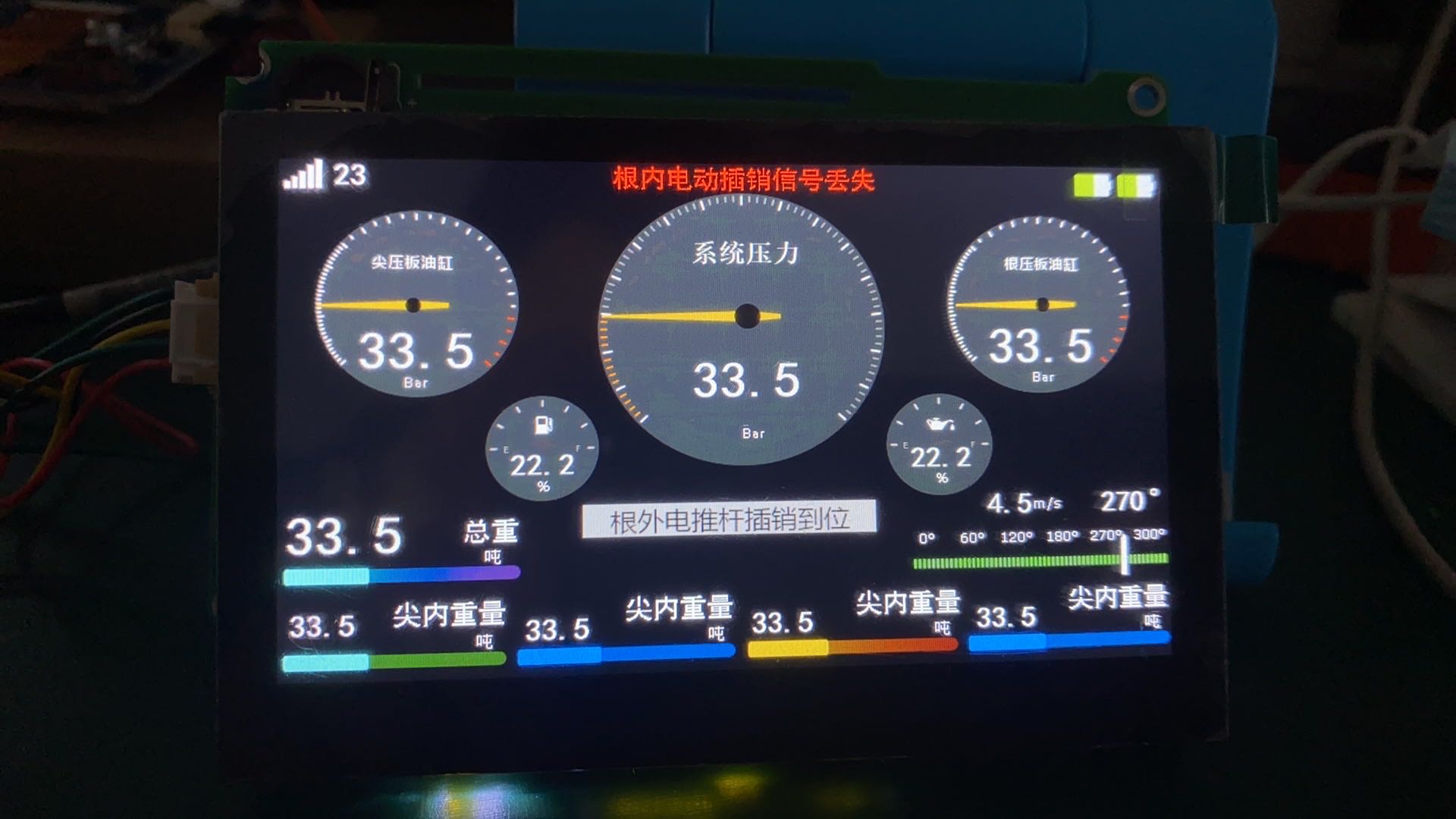

    → 4.3" Color Display

    → Monoaxial Joystick

    Contact Us about feedback display
